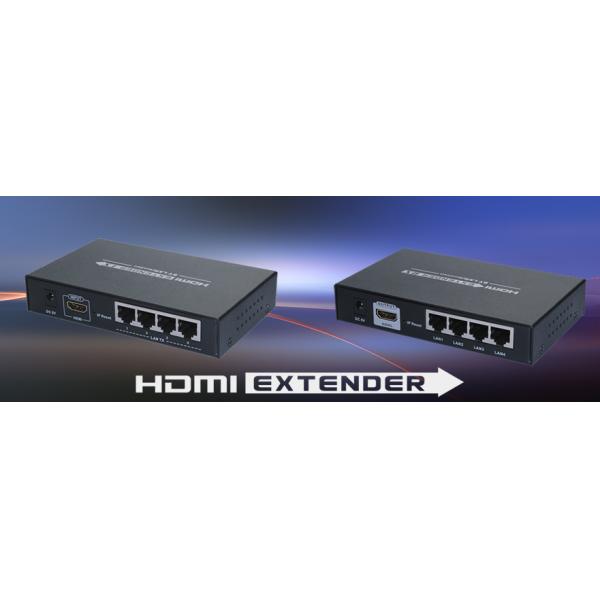

HDMI Extender over single CAT5e/6 on 120meters ZY-HD374

  • 1
  • 2

Place of Origin : ShenZhen

Brand Name : ZYSECURITY

Model Number : ZY-HD374

Certification : CE,FCC,Rohs

OEM : Box,Label,LOGO

Price : EXW

Packaging Details : 20Pair/CTN,CTN Size: 357x153.5x85mm

Delivery Time : 3-5Workdays

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 50000pcs per month

MOQ : 1pair

Contact Now

HDMI Extender over single CAT5e/6 can support the transmission up to 120m and Router fused together. It can be worked as HDMI extender and Router.

Features

*Input /Output:1x HDMI,1x LAN,
LAN1-LAN4 in TX:they can be connected 4pcs Receivers with network signal as output.
LAN1-LAN4 in RX:Any of the LAN port as network signal input,the others 3pcs LAN ports can be connected3pcs
computersor cacade more receivers with network signal as output.
*Standard TCP/IP,it is with good compatibilty of network equipment and good for network transmission and extension.
*Supports Ethernet bandwidth:100m
*HDCP compliant; Audio sample rate: 44.1KHz,48KHz;
*Video compressing format: M-JPEG.
*Transmission delay: withing 70ms for direct connection with TX and RX.
*Network data transmission rate: up to 80MHz at the highest resolution.

* Support HDMI resolution input:480i/480p@60Hz;576i/576p@50Hz;720p/1080i/1080p@50/60Hz,640x480/800x600/1024x768/1280x720/1280x768/1280x1024/1360x768/1400x1050/1440x900/1680x1050/1920x1080@60Hz

*Support HDMI resolution output:480p@60Hz;576p@50Hz;720p/1080p@50/60Hz
*Extends by router connection of LAN connection, cable length requirements are as follows:
CAT5 Maximum80mbetween two Devices
CAT5e Maximum100mbetween two Devices
CAT6 Maximum120mbetween two Devices

HDMI Extender over single CAT5e/6 on 120meters ZY-HD374

HDMI Extender over single CAT5e/6 on 120meters ZY-HD374


Item

Quantity

Mark

HDMI Extender over single CAT5e/6 on 120meters ZY-HD374

ZY-HD374

1pc

products ditemsion: 14*8.5*2.7 CM X2

Weight: 0.365 KG X 2


Power Adaptor

2pcs

:5V1A(DC 2.1mm)

1.5meters

US plug, Euro plug, UK plug....optional

User mnual

1pc

English manual, OEM manual

Color box

1pc

Natural packing box

28*9.5*6.5 CM

0.986 KG

HDMI Extender over single CAT5e/6 on 120meters ZY-HD374

Carton Box

1pc

Natural carton box

43*33*38 cm

20 KG(20set)
